PRODUCT INTRODUCTION

os5500

Long Range Displacement Gage

The os5500 is a fiber-Bragg grating (FBG) based displacement gage designed for measuring changes of up to 450 mm in civil and geotechnical structures.

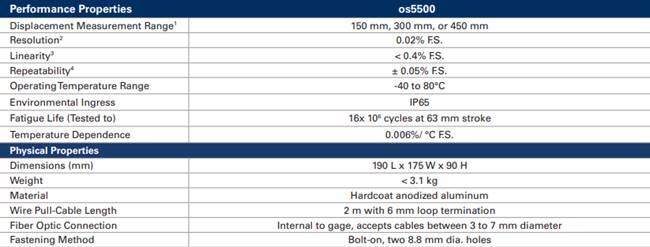

MAIN SPECIFICATIONS

PRODUCT DESCRIPTION

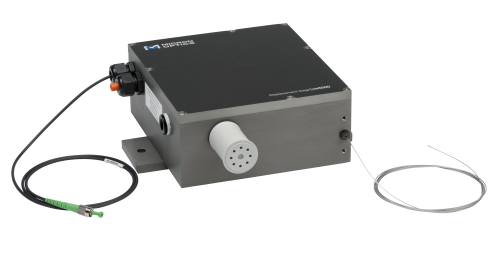

Based on FBG technology, the os5500 is specifically designed to measure displacement between two gage points on a specimen surface. The gage design is flexible enough to allow for easy attachment to various substrates, making measurements on metal, concrete and other surfaces straightforward. The FBG sensors that comprise the os5500 gage are located within the rugged hard-coat anodized aluminum enclosure which shields them from the elements and allows for installations in harsh environments.

This gage can be used alone or in series as a part of an FBG sensor array (which may include strain and temperature gages, accelerometers and other displacement gages). Cabling for such arrays is much less expensive and cumbersome than comparable electronic gage networks. Cables can be joined directly inside the enclosure, eliminating the need for separate junction boxes. The os5500 delivers the many advantages inherent to all FBG based sensors, including EMI immunity – something vibrating wire gages cannot offer.

With each gage, Luna provides a Sensor Information Sheet listing the gage factor and calibration coefficients needed to convert wavelength information into engineering units. The ENLIGHT Sensing Software provides a utility to calculate and then record, display and transmit data for large networks of sensors.

PRODUCT SOLUTIONS

The os5500 Long Range Displacement Gage, combined with the HYPERION interrogator, works with a wide range of rugged sensor options to provide provides proven and reliable solutions for challenging monitoring applications.
