os3100 Optical Strain Gage
Brand：os3100
Information >>>
PRODUCT INTRODUCTION
os3100
Optical Strain Gage
The os3100 is a spot-welded or epoxy-mounted optical strain gage
based on fiber Bragg grating (FBG) technology.

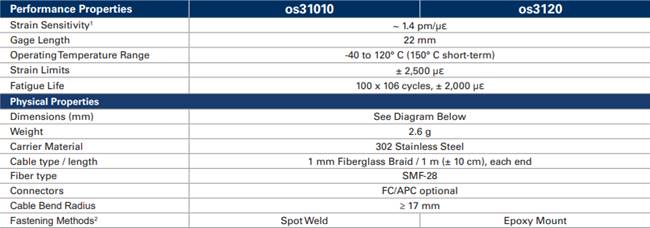

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
The os3100 Optical Strain Gage is designed to make fiber
handling easy and sensor installation fast and repeatable. Its stainless steel
carrier holds the FBG in tension, using no epoxy, and protects the fiber during
installation. For temperature compensation, the os3100 may be connected in
series with an os4100 FBG Temperature Compensation Gage or an os4350 FBG
Temperature Sensors.
Two mounting options provide for either weld or epoxy
attachment to a structure’s surface. Installation time is just a few minutes
with welded gages which can be used immediately after attachment. Epoxy gages
typically cure in less than 24 hours at room temperature, similar to electronic
foil strain gages.
In side-by-side comparisons with foil strain gages, the
os3100 is equally sensitive and accurate, while providing for greater strain
range and 100 times more fatigue life. The os3100 strain gage is qualified for
use in harsh environments and delivers the many advantages inherent to fiber
optic sensors.
PRODUCT SOLUTIONS
The os3100, combined with the HYPERION
interrogator and other optical sensors, provides proven, high-performance
solutions for a wide variety of testing and monitoring applications.
