PRODUCT INTRODUCTION
os4300
Non-Metallic Temperature
Sensors
The os4300 series includes three options for temperature
sensing based on fiber Bragg grating (FBG) technology housed within
non-metallic tubes.

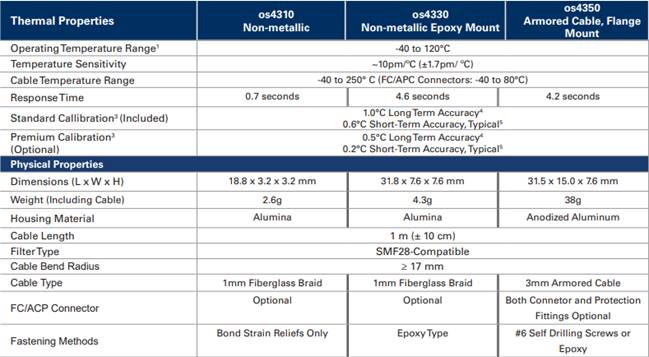

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
The os4300 Non-Metallic Temperature Sensors are housed
within a sealed, alumina ceramic tube designed to make installation easy, fast
and repeatable. With no epoxies holding the fiber to the tube, long term
stability is ensured by design.
In side by side comparisons with conventional
thermocouples, the os4300 is equally sensitive and accurate, while providing
sub-second response time, wider operating range, no calibration, and no EMI
noise. The os4300 temperature sensor is qualified for use in harsh environments
and delivers the many advantages inherent to all FBG based sensors.
Three packaging options provide for installation that
mimics that of conventional thermocouples with armored cables and protected
connectors, and small sensors that provide the user with both installation
flexibility and sub-second thermal response.
This sensor can be used alone or in series as part of an
FBG sensor array. With each sensor, Luna provides a Sensor Information Sheet
listing the calibration coefficients needed to convert wavelength information
into temperature. The ENLIGHT Sensing Software provides a utility to calculate
and then record, display, and transmit data for large networks of sensors.
PRODUCT SOLUTIONS
The os4300 temperature sensors, combined
with the HYPERION interrogator, provide proven, high-performance solutions for
challenging testing and monitoring applications.
