os1100 Fiber Bragg Grating
Brand：os1100
Information >>>
PRODUCT INTRODUCTION
os1100
Fiber Bragg Gratings
The os1100 Fiber Bragg Grating (FBG) is designed for use in fiber
optic sensing applications. The os1100 consists of a single FBG centered in a
two-meter length of polyimide coated optical fiber.

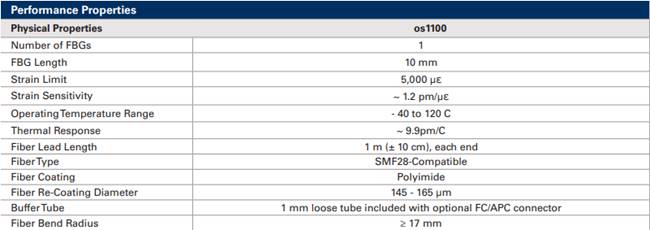

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
FBGs are the fundamental elements upon which most fiber
optic sensors are based. An FBG is an invisible reflector inside the core of
the fiber that is set to a specific wavelength of light. When the fiber where
an FBG is located is exposed to strain or temperature, the FBG’s “center
wavelength” shifts to a higher or lower wavelength. The direction and magnitude
of the shift is proportional to the change in strain or temperature.
The os1100 is a single FBG on a 2 m fiber. One or two
FC/APC connectors, and loose buffer tube protection, are available as packaging
options.
os1100’s is used in applications ranging from basic
experiments with FBGs to the construction of complex transducers containing one
or more FBGs. The polyimide coating provides excellent transfer of strain
through the fiber coating to the FBG in the fiber core. Polyimide also performs
well over a wide temperature range. The splice free array provides a convenient
way to take advantage of the multiplexing capabilities of FBGs.
PRODUCT SOLUTIONS

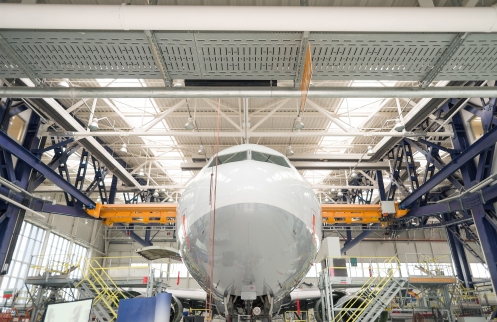

The HYPERION with FBG sensors is an
ideal sensing solution for monitoring applications in challenging conditions
and environments.
