PSM-002 Miniature Polarization Scrambler
Brand：PSM-002
Information >>>
PRODUCT INTRODUCTION
PSM-002
Miniature
Polarization Scrambler

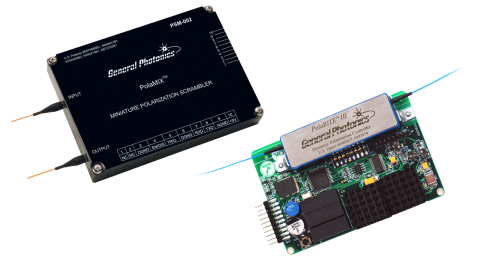

The PSM-002 Miniature Polarization Scrambler is a small module
that generates discrete, random states of polarization (SOP) at a
user-controllable rate.

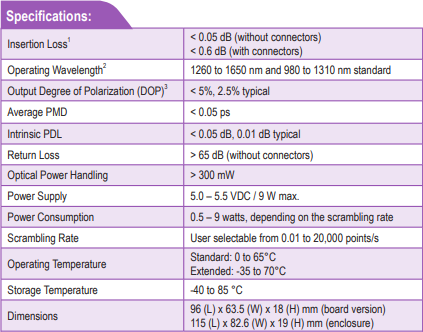

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
The PSM-002 uses a fiber squeezer polarization controller
to generate discrete, random polarization states at a user-controllable rate
between 0.01 and 20,000 points/s, distributed for uniform Poincaré sphere
coverage. It can also perform triggered random state generation for
synchronization with other equipment in the system. It is designed for
integration into sensor and communication systems, and is available either as a
standard board for lab applications or fully enclosed in a watertight enclosure
for applications in high humidity environments. It also comes in either
standard or extended temperature versions.
PRODUCT SOLUTIONS
The PSM-002 is useful in any application
that requires randomized polarization states at a specified rate or on receipt
of a trigger signal. Applications include sensor and communication systems,
polarization sensitivity elimination, and PDL measurement.
