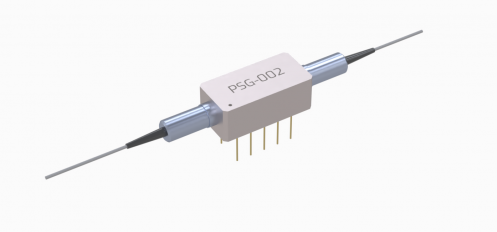

PSG-002 High-Speed Polarization State Generator
Brand：PSG-002
Information >>>
PRODUCT INTRODUCTION
PSG-002
High-Speed Polarization
State Generator

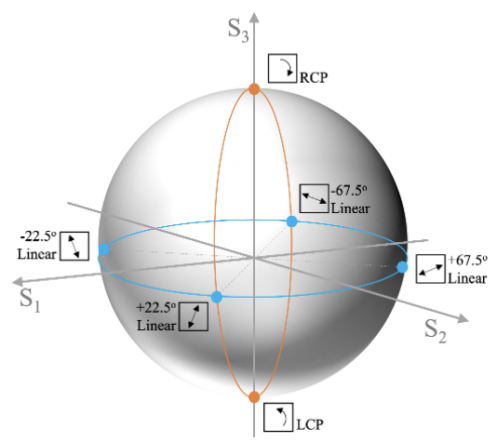

Luna Innovations’ high-speed polarization state generator (PSG)
module enables quick generation of up to six distinctive polarization states
(LCP, RCP, Linear ±22.5°, Linear ±67.5° ) across a Poincaré sphere in less than
50 μs between two consecutive states, with high repeatability of less than 0.1°.

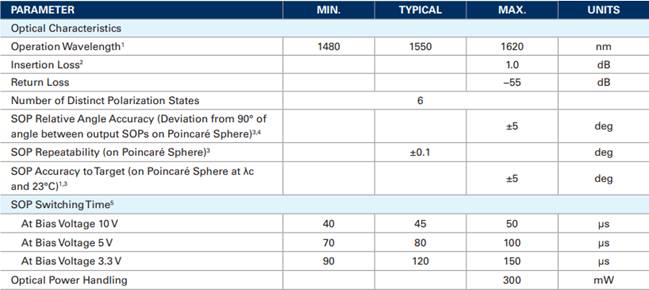

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
The new compact packaging is ideal for integration into
systems that require precise generation of these 6 polarization states or
precise 90° polarization rotation. The PSG-002 uses a new self-latching
technique which reduces power consumption and heat generation. In addition, its
predictable wavelength and temperature dependence allows for easy calibration,
making it a perfect choice in swept wavelength component measurement systems
and other applications.
PRODUCT SOLUTIONS
The PSG-002 is a small module suitable
for OEM integration wherever a measurement requires some subset of the 6
Poincaré sphere pole points. Applications include Mueller matrix-based
measurements, polarization OTDR, performance monitoring, and swept frequency
component measurement systems.
