VDL-002 Manual Optical Delay Line
Brand：VDL-002
Information >>>
PRODUCT INTRODUCTION
VDL-002
Manual Optical Delay
Line
The VDL-002 family of manual variable optical delay lines are
small, shorter range delay lines that allow a user to adjust the delay to a
desired position and then lock it in place.

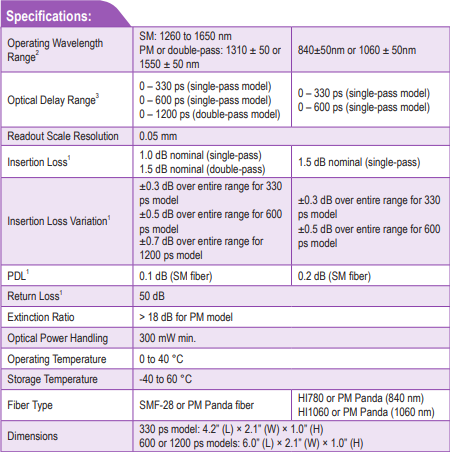

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION

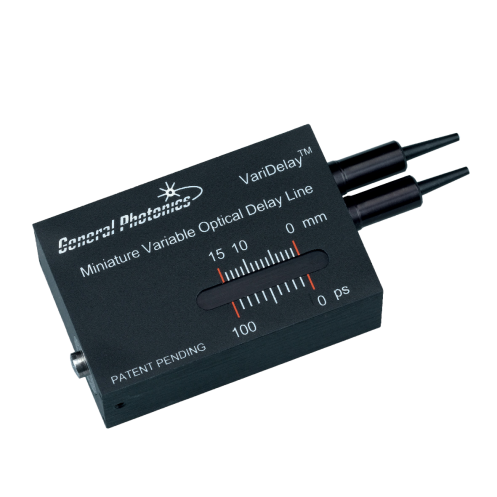

The VDL-002 is a fiber coupled delay line with the delay
adjustment path in free space. The delay is adjusted by manually turning a
screw on one end of the device, and position is read from a scale on the side.
The device includes a locking screw to lock the position setting. It is
enclosed in a sturdy, water-resistant enclosure.
The delay line is available with either single mode
or PM fiber pigtails.
PRODUCT SOLUTIONS
The VDL-002 is designed for OEM
applications that require short-range optical path adjustment to find an
optimal position and then lock it in place. Applications include optical
coherence tomography (OCT) systems, test equipment, and network modules.
