VDL-001 Manual Variable Optical Delay Line
Brand：VDL-001
Information >>>
PRODUCT INTRODUCTION
VDL-001
Manual Variable
Optical Delay Line
The VDL-001 family of manual variable optical delay lines provides
optical path length adjustment of up to 600 ps in single-pass configuration.

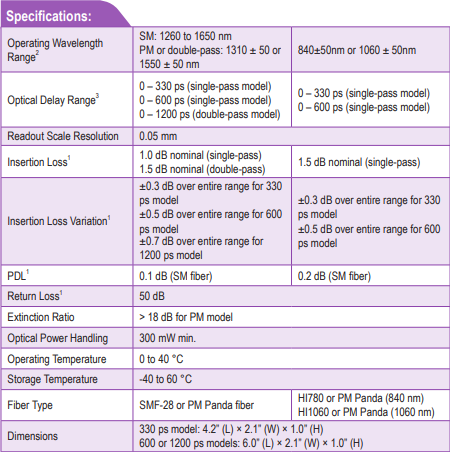

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION

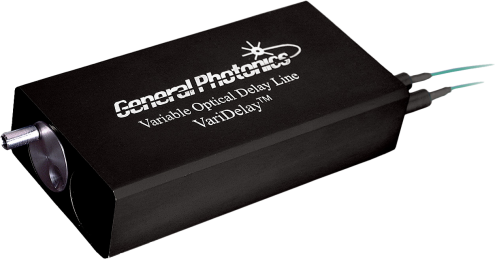

The VDL-001 is a fiber coupled delay line with the delay
adjustment path in free space. The delay is adjusted by manually turning a
handle on one end of the device, and position is read from a vernier scale on
the side. The delay line is available with either single mode or PM fiber
pigtails.
PRODUCT SOLUTIONS
The VDL-001 is useful for optical path
adjustment of up to several cm where high-speed adjustment and scanning are not
required. Applications include optical coherence tomography (OCT) and other
interferometric systems, multichannel path matching in laser systems, network
optical length control and timing alignment.
