DISCONTINUED POD-001 High Speed In-Line Polarimeter
Brand：POD-001
Information >>>
PRODUCT INTRODUCTION
POD-001
High Speed In-Line
Polarimeter
The POD-001 is a high-speed in-line polarimeter for detecting both
degree of polarization (DOP) and the state of polarization (SOP).

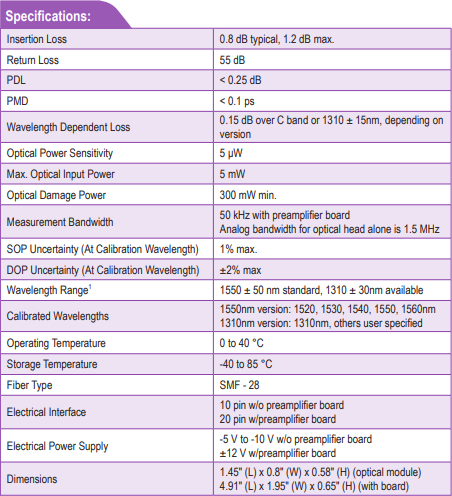

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
The POD-001 in-line polarimeter is specially designed for
low cost, high-speed polarization characterization without interrupting data
traffic. It outputs four voltage signals for calculating both the degree of
polarization (DOP) and the state of polarization (SOP) of the light passing
through the device in microseconds.

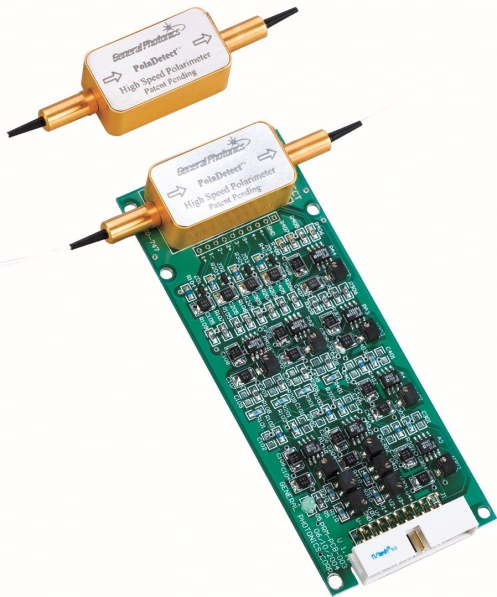

PolaDetect™ is ideal for integration into polarization
monitoring and polarization stabilization modules, or in polarization
characterization instruments. It comes with a preamplification board to provide
analog signals for SOP/DOP calculation, feedback control, and computer
interface. Calibration matrices are provided with every device for the
calculation. Devices without preamplification board and calibration matrix are
also available for OEM purposes.
PRODUCT SOLUTIONS
The POD-001 is suitable for integration
into polarization-sensitive OCT, fiber sensor, and optical measurement systems.
