DISCONTINUED MZI-001 Mach-Zehnder Interferometer
Brand：MZI-001
Information >>>
PRODUCT INTRODUCTION

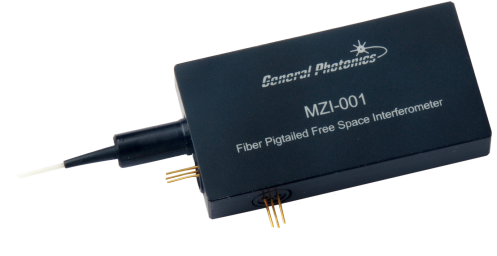

MZI-001
Mach-Zehnder
Interferometer
The MZI-001 is a fiber pigtailed Mach-Zehnder free space
interferometer that detects changes in optical frequency.

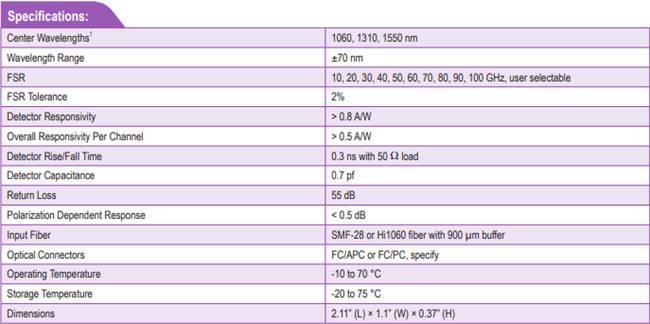

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
The MZI-001 free space Mach-Zehnder interferometer has
two high speed photodetectors for the balanced detection of the two
complementary outputs of the interferometer. The free space design
eliminates much of the polarization sensitivity and free spectral range (FSR)
uncertainty associated with fiber interferometers. The FSR, or zero-cross
spacing, can be defined to within 2%. FSRs between 10 GHz and 100 GHz are
available.
PRODUCT SOLUTIONS
Applications include determining the
instantaneous frequencies of wavelength-swept light sources, providing a
frequency clock for system triggering in OCT systems, detecting sensing signal
spectral drift in fiber sensors, and detecting laser frequency drift in
coherent communication systems.
