BPD-003 OEM Balanced Photodetector
Brand：BPD-003
Information >>>
PRODUCT INTRODUCTION

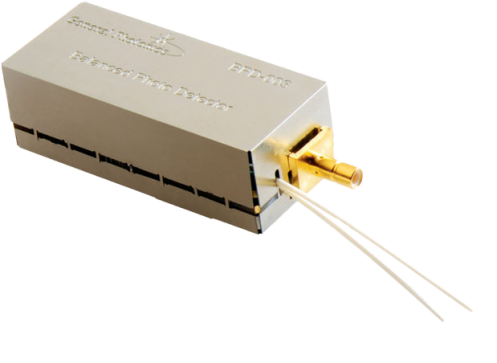

BPD-003
OEM Balanced Photodetector
The BPD-003 is a small, low noise, DC coupled balanced detector
for OEM applications.

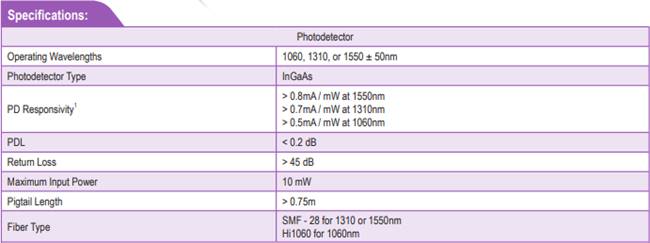

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
The BPD-003 combines an optical head and a
post-amplification board with an SMA or SMB RF output connector. The optical
head consists of two input fibers aligned with a pair of balanced
photodetectors followed immediately by an integrated low noise transimpedance
amplifier (TIA). The post-amplification circuit further conditions and
amplifies the output signal to a range of ± 3.5 V. The device is packaged in a
small, lightweight shielding box. It has a bandwidth of up to 200 MHz.
PRODUCT SOLUTIONS
The BPD-003 is a small balanced detector
specifically intended for integration into larger systems such as OCT, sensor,
or measurement systems.
