DOP-201 Degree of Polarization Meter
Brand：DOP-201
Information >>>
PRODUCT INTRODUCTION
DOP-201
Degree of
Polarization Meter
The DOP-201 Degree of Polarization Meter simultaneously measures
the degree of polarization (DOP) and power of a light source under test.

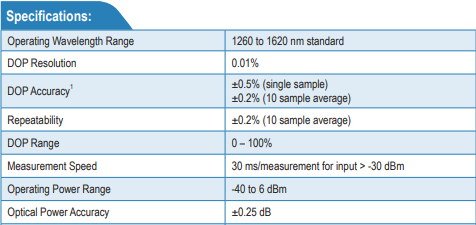

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
The DOP-201 uses a low activation loss fiber squeezer
polarization controller in conjunction with a patented maximum-minimum search
method that allows it to unambiguously measure both low and high DOP values in
30 ms, and to operate over a wide wavelength range. Simultaneous measurement of
DOP and optical power level of the light source under test can be used to
obtain DOP power dependence and to ensure low insertion loss during depolarizer
manufacturing.
PRODUCT SOLUTIONS
The DOP-201 measures the output DOP of a
light source or optical device. Applications include characterization of low
and high DOP light sources, depolarizer characterization, and characterization
of fiber gyro coils.
