Luna 6415 Lightwave Component Analyzer
Brand：Luna 6415
Information >>>
PRODUCT INTRODUCTION
LUNA 6415
Lightwave Component
Analyzer
The Luna 6415 is a fast and simple-to-use analyzer for passive
optical components and modules. The Luna 6415 measures and analyzes the
Insertion Loss (IL) and Return Loss (RL) distribution, as well as length,
working in either reflection or transmission.

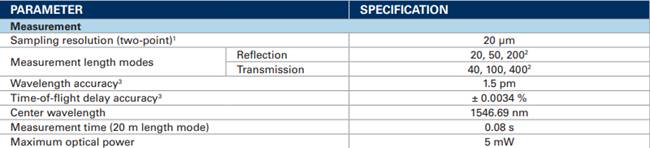

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
The Luna 6415 utilizes optical frequency domain
reflectometry (OFDR) technology to measure backscattered or transmitted light
as a function of distance. Extremely high sensitivity and sampling resolution

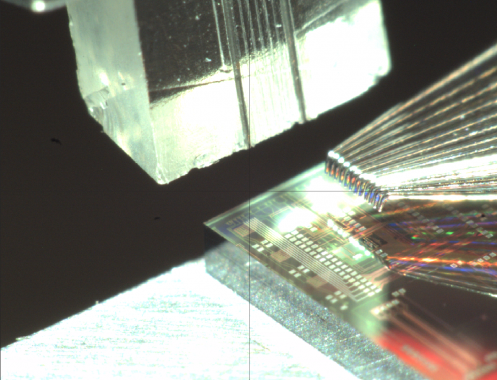

(20 μm) make the Luna 6415 an ideal testing tool for photonic integrated
circuits (PICs) and silicon photonics. The Luna 6415 reduces the cost and
complexity of test while increasing throughput by measuring RL, IL and length
in reflection or transmission with a single instrument.
PRODUCT SOLUTIONS
The Luna 6415 is optimized for fast and
accurate test and characterization of optical devices and fiber optic systems.
