PRODUCT INTRODUCTION

T-RAY® 5000 SERIES

Lens Options

The T-Ray® 5000 is the first compact pulsed terahertz measurement system that is robust enough to be deployed in an industrial environment and has all of the flexibility provided by our fiber coupled sensor heads in a rack mount package. By having replaceable sensor heads, the T-Ray® 5000 can be configured to fit your specific application.

MAIN SPECIFICATIONS

PRODUCT DESCRIPTION

The basic system includes a T-Ray® 5000 Terahertz Controller, umbilical(s), a THz transceiver or, a THz transmitter and a THz receiver. The transmitter and receiver come standard with a 38mm diameter lens in an adjustable lens tube. The lenses are manufactured from high-density polyethylene (HDPE) and are manufactured to an aspheric profile for high quality focusing across a wide range of frequencies.

TeraMetrix has specifically designed these lenses for use with their fiber-coupled transmitter and receiver sensor heads. When mounted on the front of a transmitter, the lens will provide a collimated or a focused beam. The “focal length” listed here is the distance from the lens surface to the beam waist.

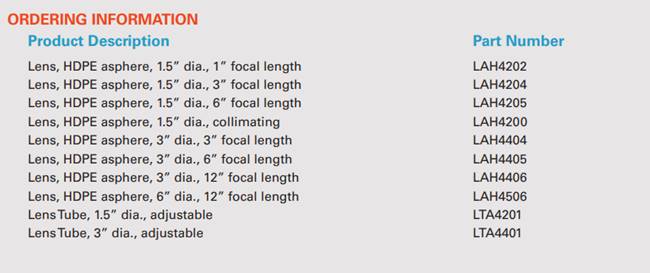

Use relay lenses in conjunction with a collimating lens on the sensor head. Lens tubes that mount on the transmitter or receiver are available for 1.5”, and 3” lenses. The collinear adapter (AXA5001) and the integrated collinear transceiver (HXC50xn) are compatible with 1.5”diameter lenses.

PRODUCT SOLUTIONS

The T-Ray® 5000 terahertz measurement system is robust enough to be deployed in an industrial environment and has all of the flexibility to solve your measurement application.
