T-RAY® 5000 SERIES

AXA40n1 Collinear Adapter

The T-Ray® 5000 is the first compact pulsed terahertz measurement system that is robust enough to be deployed in an industrial environment and has all of the flexibility provided by our fiber coupled sensor heads in a rack mount package. By having replaceable sensor heads, the T-Ray® 5000 can be configured to fit your specific application.

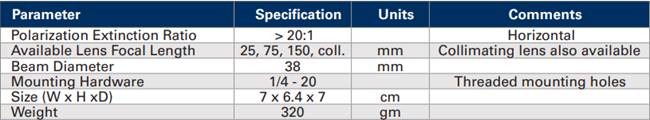

MAIN SPECIFICATIONS

PRODUCT DESCRIPTION

The stand-alone transmitter (HTS40n1) and receiver (HRS40nm) can be coupled with the AXA5001 Collinear Adapter to perform as a collinear reflection transceiver. Reflection measurements are easily acquired because the transmitter and receiver share the same lens. Spatial resolution down to 100 microns has been obtained using this arrangement with a 1in. focal length lens. The transceiver is ideal for reflection tomography.

Alignment pins provide precise positioning. The adapter has two ports for the lens, so it can be assembled as right or left-handed. When used with an HTS40nm and an HRS40n1, the assembled collinear transceiver will provide over 3.5 THz of bandwidth and 60dB of S/N. The AXA5001 allows the transmitter and receiver to perform as an integrated transceiver.

The T-Ray® 5000 is the first compact pulsed terahertz measurement system that is robust enough to be deployed in an industrial environment and has all of the flexibility provided
by our fiber coupled sensor heads in a rack mount package. By having replaceable sensor heads, the T-Ray® 5000 can be configured to fit your specific application.

PRODUCT SOLUTIONS

The T-Ray® 5000 terahertz measurement system is robust enough to be deployed in an industrial environment and has all of the flexibility to solve your measurement application.
