PRODUCT INTRODUCTION

T-RAY® 5000 SERIES

LSG500n Line Scan Gauge

The LSG500n Line Scan Gauge (LSG) for the T-Ray® 5000 provides a handheld solution for high speed scanning of a line 50 or 75mm in length.

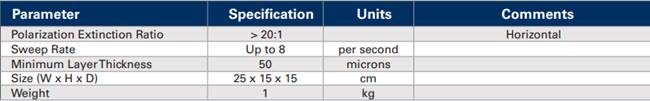

MAIN SPECIFICATIONS

PRODUCT DESCRIPTION

The LSG500n Line Scan Gauge (LSG) for the T-Ray® 5000 provides a handheld solution for high speed scanning of a line 50 or 75mm in length. The line scan image is displayed on the screen of the handheld tool and can be analyzed by dedicated software for specific applications. Current software solutions can provide layer thickness measurements, detection of voids, or alignment of body panels with measurement of the vertical and horizontal offset between them.

The live display allows real time alignment, observation and measurement of surface and sub-surface features.

The gauge scans at rates up to 8 sweeps per second but is adjustable to allow for higher resolution. The gauge is supplied with a 3” lens which provides a 3” scan range. An accessories kit is available which provides a 2” lens standoffs and a calibration plate.

PRODUCT SOLUTIONS

The T-Ray® 5000 terahertz measurement system is robust enough to be deployed in an industrial environment and has all of the flexibility to solve your measurement application.
