DISCONTINUED T-RAY® 5000 SERIES Terahertz Control Unit
Brand：T-Ray® 5000 TCU52nm
Information >>>
PRODUCT INTRODUCTION
T-RAY® 5000 SERIES
Terahertz Control
Unit
The T-Ray® 5000 Control Unit monitors and controls all aspects of
THz generation and detection, precisely delivering controlled optical signals
to the terahertz transmitters and receivers, or the T-Gauge® Sensor Heads,
enabling them to generate and receive terahertz signals.

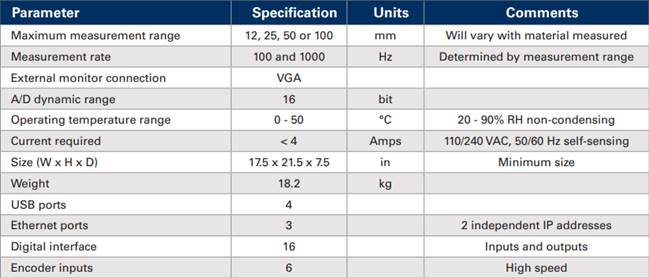

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
The T-Ray® 5000 Control Unit is appropriate for use in
industrial, nondestructive testing, and scientific applications. It monitors
and controls all aspects of THz generation and detection. It delivers precisely
controlled optical signals to the terahertz transmitters and receivers, or the
T-Gauge® Sensor Heads, enabling them to generate and receive terahertz signals.
Measured data are processed within the Control Unit at a rate of up to 1 kHz,
making theT-Ray® 5000 one of the fastest terahertz systems available.
The data generated by the T-Gauge® Sensor Heads and
processed by the T-Ray® 5000 Control Unit enable multiple measurements of a
product simultaneously. One T-Gauge® Sensor can measure the basis weight,
caliper thickness, multi-layer thicknesses, density and moisture content of a
sample in a single pass.
Attached to a separate transmitter and receiver, the
T-Ray® 5000 Control Unit can perform spectroscopic measurements as well as
transmission and reflection imaging.

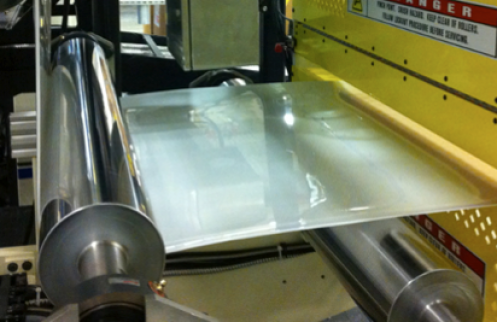

PRODUCT SOLUTIONS
The T-Ray® 5000 terahertz
measurement system is robust enough to be deployed in an industrial environment
and has all of the flexibility to solve your measurement application.
