3DViz 3D and 2D Visualization Software
Brand：3DViz
Information >>>
PRODUCT INTRODUCTION
3DVIZ
3D and 2D
Visualization Software
The 3DViz software
provides intuitive 2D and 3D visualization of high-definition sensor data. The
software allows strain or temperature data from an ODiSI system to be
visualized directly on a 3D CAD model or a 2D image.

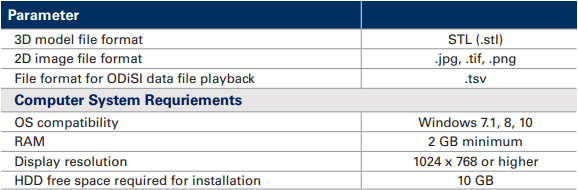

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
The 3DViz software
provides graphical visualization of strain and temperature data acquired by an
ODiSI system. Simply load an .stl or graphics file of the test article, map the
fiber optic sensor routing onto the model or image, and then view color-coded
temperature or strain data directly on the image or 3D model.
ODiSI strain and temperature data can be mapped and
displayed in real time, by subscribing to sensor data streaming from a networked
ODiSI 6000 Series system. Alternatively, ODiSI data can be loaded and
replayed from a previously acquired ODiSI data. The sensor data visualization
software can create videos of the evolution of strain and temperature over time
to provide greater insight into designs.
PRODUCT SOLUTIONS
The ODISI system is the ideal solution
for applications where more data and more detail can provide needed insight
into materials, components, structures or processes.
