HD6S High-Definition Fiber Optic Strain Sensors
Brand：HD6S
Information >>>
PRODUCT INTRODUCTION
HD6S
High-Definition Fiber
Optic Strain Sensors
Unlike conventional
strain gages that only measure strain at a discrete point, Luna’s high
definition fiber optic strain gages provide continuous, high-resolution (less
than 1 mm) measurements of strain along the entire length of the sensor (up to
50m).

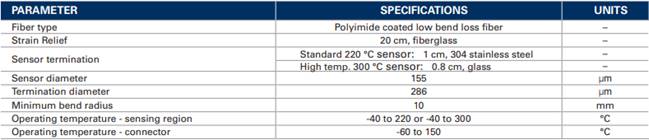

MAIN SPECIFICATIONS
PRODUCT DESCRIPTION
HD strain sensors are
low-profile versatile fiber optic sensors which, when used with an ODiSI
system, can provide more than a thousand distinct strain measurements per
meter. Using standard unaltered optical fiber, HD strain sensors are packaged
to deliver maximum flexibility with optimal strain transfer in a wide variety
of applications and installations.
PRODUCT SOLUTIONS
HD strain sensors, combined with the
ODISI system, are the ideal solution for applications needing high-density
strain data and more versatile gaging.
